Product Details:
|

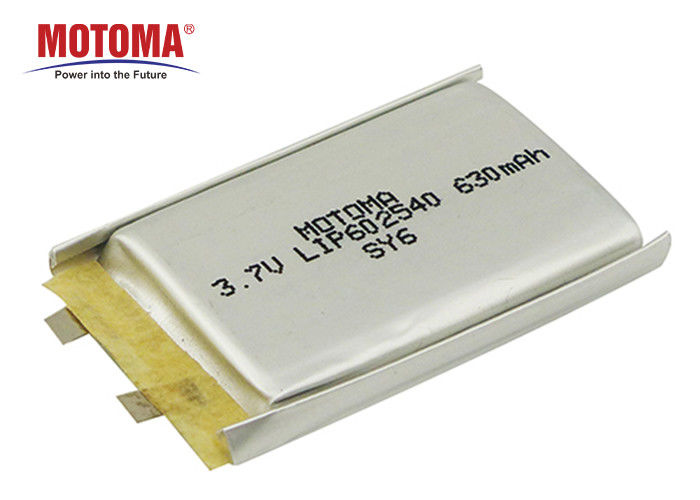

| Battery Model: | LIP602540 | Cell Size: | 6.0 X 25 X 40 Mm |
|---|---|---|---|
| Nominal Voltage: | 3.7V | Capacity: | 630mAh |
| Connector: | Available, Molex/JST Etc, JST Or Optional | Warranty: | 1 Year |
| High Light: | 630mAh Rechargeable Lithium Ion Battery,BIS Rechargeable Lithium Ion Battery,UN li ion rechargeable battery |
||
| Battery model | LIP602540 |
| Nominal voltage | 3.7V |
| Nominal capacity | 630mAh |
| Minimum capacity | 630mAh |
| Charging voltage | 4.2V |
| Standard charging current | 126mA (0.2C) |
| End current | 6.3 mA (0.01C) |
| Max. charging current | 315 mA (0.5C) |
| Standard discharging current | 126 0mA (0.2C) |
| Max. discharging current | 630 mA (1C) |
| End voltage of discharge | 3.0 V |
| Dimension of cell | 6.0 x 25 x 40 mm |
| Charging temperature range | 0~45℃ |
| Discharging temperature range | -20~60℃ |
Battery Feature
Battery Advantage
FAQ
1. Q: Is there a MOQ request?
A: The MOQ is 1000pcs per order.
2. Q: What's the normal lead time?
A: Normally, the lead time 15-35 days, and it would be shorter if there is stock.
3. Q: Can we get samples for testing before place an order?
A: Yes, 5-10 pcs free samples can be provided for testing.
4. Q: Do you provide customized service?
A: Yes, we have professional engineering team here to design battery.
