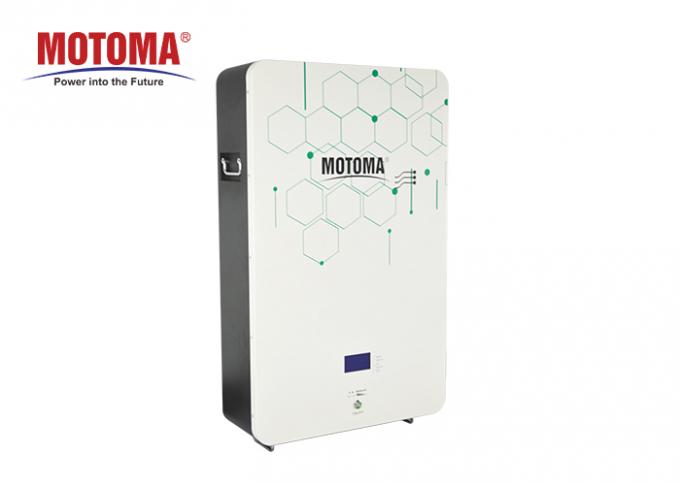

Wall Mounted 48V 200Ah LiFePO4 Lithium Battery For Home Solar System

Certification
China Shenzhen Motoma Power Co., Ltd. certification
China Shenzhen Motoma Power Co., Ltd. certification
I'm Online Chat Now

Wall Mounted 48V 200Ah LiFePO4 Lithium Battery For Home Solar System

Wall Mounted 48V 200Ah LiFePO4 Lithium Battery For Home Solar System
Wall Mounted 48V 200Ah LiFePO4 Lithium Battery For Home Solar System
Wall Mounted 48V 200Ah LiFePO4 Lithium Battery For Home Solar System Wall Mounted 48V 200Ah LiFePO4 Lithium Battery For Home Solar System Wall Mounted 48V 200Ah LiFePO4 Lithium Battery For Home Solar System Wall Mounted 48V 200Ah LiFePO4 Lithium Battery For Home Solar System

Large Image :  Wall Mounted 48V 200Ah LiFePO4 Lithium Battery For Home Solar System

Product Details:
Place of Origin: China
Brand Name: MOTOMA
Certification: CE,UL,IEC62133,UN38.3,MSDS
Model Number: LFP48V200Ah
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 15-29 days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 12,000pcs per day

Wall Mounted 48V 200Ah LiFePO4 Lithium Battery For Home Solar System

Description
Brand: Motoma Battery Type: Ups Lithium Battery
Nominal Voltage: 48V Size: 860*530*200mm
Capacity: 200Ah Communicated Mode: RS485/RS23S/CAN
High Light:

Wall Mounted LiFePO4 Lithium Battery

,

Home Solar System LiFePO4 Lithium Battery

,

48V 200Ah Solar System Battery

MountedWall 48V200Ah LiFePO4 Lithium Battery with Intelligent BMS,Home Solar System

Battery Parameters

Battery model                                      LFP48V200Ah
Nominal voltage                                            48V
Capacity                                            200Ah
Nominal capacity                                           10.24kWh
Standard charging current                                            20A
Max. charging current                                           100A
Operating voltage range                                            40V~58.4V
Standard discharging current                                             20A
Max.discharging current                                            100A
Dimension                                            862*530*200mm
Weight                                             107kg
Charging temperature range                                           0~45℃
Discharging temperature range                                           -20~60℃
Cycle life                                           4000 times
Communication mode                                          RS485/CAN/RS232




Battery Features



  • Replace lead acid batteries.
  • Wide operation temperature: -20ºC~60ºC
  • With communication,bluetooth
  • Environment-friendly batteries.
  • Customized batteries voltage,capacity and size.



Battery Advantages



  • Advanced BMS protection, more safe
  • High energy density,no memory effect.
  • Good performance high temperature batteries.
  • With certifcates such as CE/UL/MSDS.
  • Experienced R&D team,professionl service

  • Professional sales team to provide professional project solutions.



Wall Mounted 48V 200Ah LiFePO4 Lithium Battery For Home Solar System 0Wall Mounted 48V 200Ah LiFePO4 Lithium Battery For Home Solar System 1

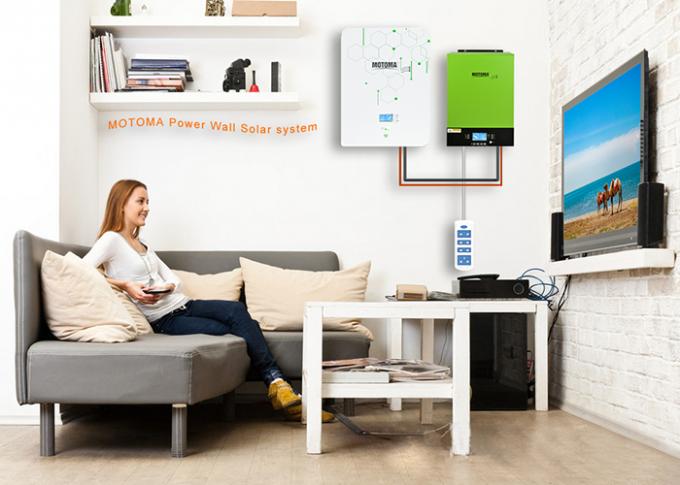

Battery Application





Wall Mounted 48V 200Ah LiFePO4 Lithium Battery For Home Solar System 2Wall Mounted 48V 200Ah LiFePO4 Lithium Battery For Home Solar System 3



Battery Performance



Wall Mounted 48V 200Ah LiFePO4 Lithium Battery For Home Solar System 4

Wall Mounted 48V 200Ah LiFePO4 Lithium Battery For Home Solar System 5



FAQ

1. Q: Is there a MOQ limit?

    A: The MOQ is 1pcs per order.

2. Q: What's the normal lead time?

    A: Normally it's 15-25 days, and the lead time would be much shorter if there is stock.

3. Q: Can I get samples for testing before place an order?

    A: Yes, 1-5 pcs samples can be provided for testing.

4. Q: Do you provide customized service

    A: Yes, we have professional engineering team to design battery for clients.
